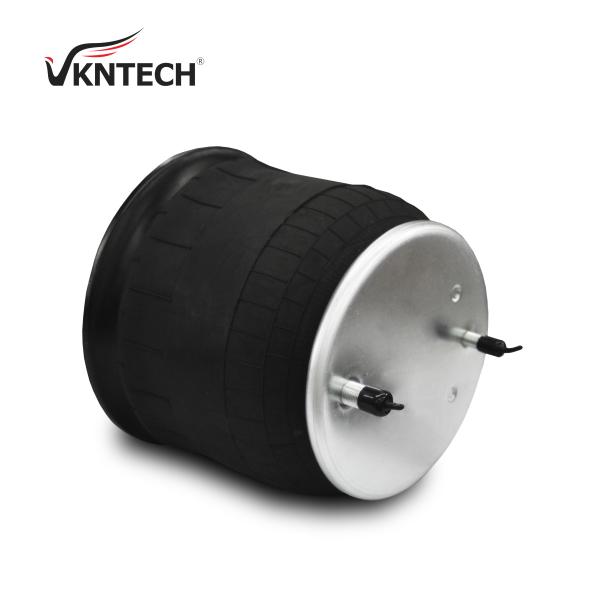

Natural Rubber 9 10S-16 A 382 Contitech Air Spring Systems 1R12-303 W01-358-9780

Name: Natural Rubber 9 10S16 A 382 Contitech Air Spring Systems 1R12303 W013589780
Brand: VKNTECH
Price: 1.00 USD

Wholesale Natural Rubber 9 10S-16 A 382 Contitech Air Spring Systems 1R12-303 W01-358-9780 from china suppliers

Place of Origin : Guangdong, China

Brand Name : VKNTECH

Certification : IATF16949/ISO9000

Packaging Details : CARTON/PALLET

Supply Ability : 2000000pcs/Year

MOQ : 10 Pieces

Price : $1.00 - $50.00/Pieces

OE NO. : W01-358-9780

Warranty : 12 Months

Type : by sea/by truck/by air

Car Model : For bus/truck&trailer

Price condition : FOB China

Sample : Available

Material : Imported Natrul Rubber

Operation : Gas-filled

Brand : VKNTECH or customized

Service offered : OEM

Suspension system : Air Suspension Spring

Type of Goods : Air Spring/Air bags/Air Ballons

Package : Standard packing or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

W01-358-9780 , 9 10S-16 A 382 Air Suspension Spring For Truck Air Spring 1R12-303 Air Ballons

OEM Reference

Firestone	W01-358-9780	FREIGHTLINER	16-13810-000
	W01-358-5779
	1T15ZR-6
Goodyear	1R12-303
	1R12-186
	1R12-189
Phoenix	1DK23K9780
Contitech	9 10S-16 A 382

Firestone 9780, Firestone 8537, Freightliner 16-13810-000, 16-13810-001, 16-13810-002, 681-320-0017, A16-14004-000, A16-14004-001, Firestone W01-358-9780, W01-377-8537, Goodyear 1R12-189, 1R12-303, 1R12-186, Triangle 8382, Contitech 910S-16P382, Watson & Chalin AS01471G, Freightliner 1613810000, 1613810001, 1613810002, 6813200017, A1614004000, A1614004001, Firestone W013589780, W013778537, Goodyear 1R12189, 1R12303, 1R12186, Triangle 8382, Contitech 910S16P382, Watson & Chalin AS01471G

Product Drawing

Natural Rubber 9 10S-16 A 382 Contitech Air Spring Systems 1R12-303 W01-358-9780

Technical Data

Order Number:	W01-358-9780
Bellows #:	1T15ZR-6
Assembly Weight:	16.6 lbs
Design Height:	13-15.5 inches
Minimum Jounce Height:	N/A inches
Maximum Rebound Height:	N/A inches
Loading Capacity at 20 psig:	1,600 lbsf
Loading Capacity at 60 psig:	4,800 lbsf
Loading Capacity at 90 psig:	7,200 lbsf
Natural Frequency:	Hz
Maximum Diameter:	12.7 inches
Material Type:	Natural Rubber
Operating Temperature:	57Cº to-54Cº

QUALITY - Easy to identify part number permanently engraved on the rubber. 4.5 - 5.00 mm thick rubber that exceeds OEM requirements. 25% stronger 4140 grade steel studs. Stronger composite pistons. Highest leak test ratio after final assembly. Industry's only air spring backed with a Limited Lifetime Warranty.

✅ SPECS -
Extended Height: 23.00"
